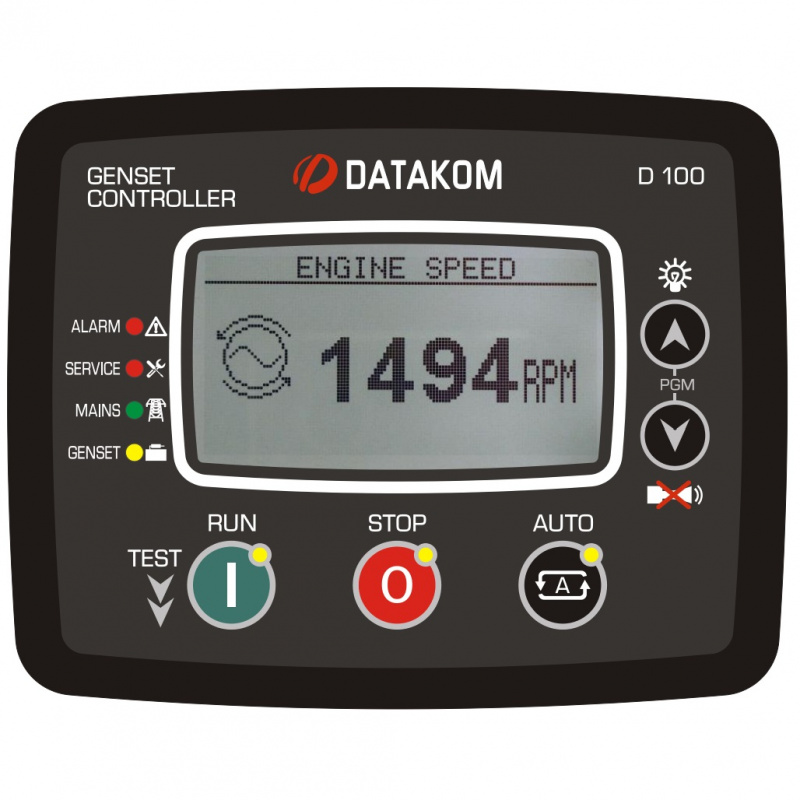

DATAKOM D-100-MK2 Multifunctional Genset Controller with J1939

The D-100 MK2 is a next generation genset control units combining multi-functionality and wide communication possibilities together with a reliable and low cost design. The unit complies and mostly exceeds world’s tightest safety, EMC, vibration and environmental standards for the industrial category.

Software features are complete with easy firmware upgrade process through USB port. The Windows based PC software allows monitoring and programming through USB, serial and GPRS. The PC based Rainbow Scada software allows monitoring and control of an unlimited number of gensets from a single central location.

Functioanalities:
•AMF unit with uninterrupted transfer
•ATS unit with uninterrupted transfer
•Remote start controller
•Manual start controller
•Engine controller
•CTs at genset or load side

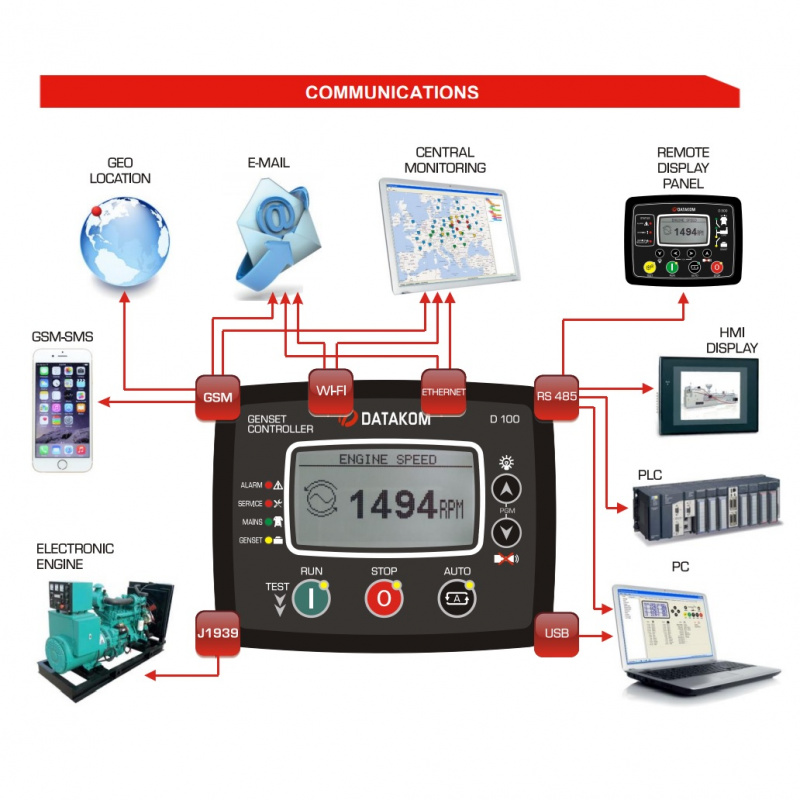

Communications:
• GSM Modem (2G-3G-4G) *
• Ethernet 10/100Mbits *
• Wi-Fi *
• RS-485 isolated (2400-38400baud) *
• RS-232 isolated (2400-38400baud) *
• USB Device
• J1939 CANBUS
• Central Monitoring through internet *
• SMS message sending *
• PC software: Rainbow Plus
• Central monitoring *
• Modbus RTU through RS-485 *
• Modbus TCP/IP *


WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
