DKG-090 Internet adapter for D-300/500L/500/700 and DKM-411, DC power supply

• Quad-band GSM/GPRS 850/900/1800/1900MHz
• GPRS Class 12 communication
• Magnetic antenna with 2m cable supplied together with module
• Allows remote monitoring, control, parameter setting through GPRS network
• Connects all Datakom IP enabled modules to Rainbow Scada
• Supports E-Mail and SMS sending
• Lock-up free operation with Datakom IP enabled models
• DIN Rail mounted

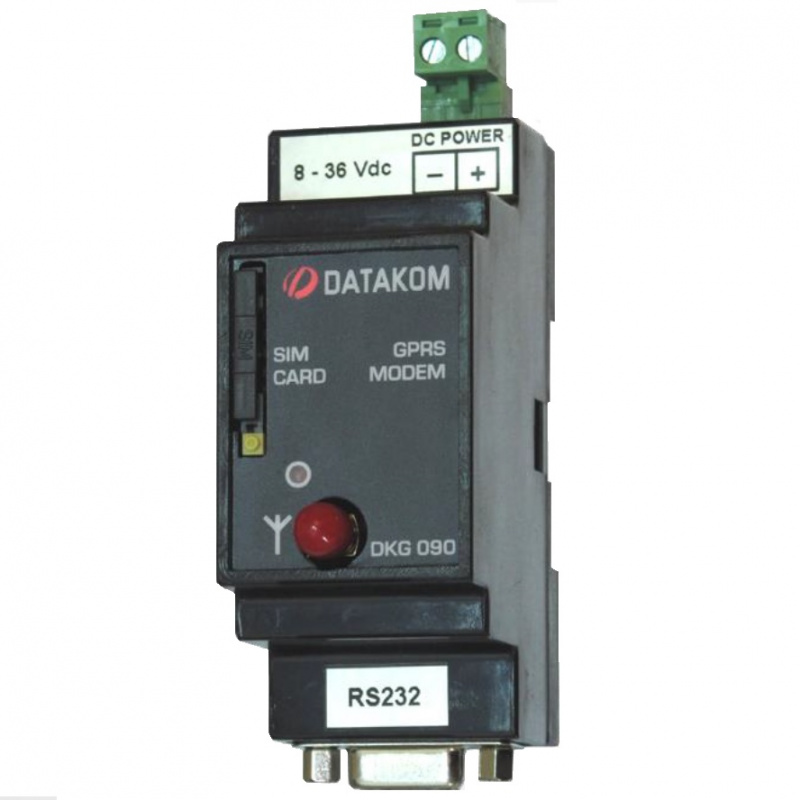

The DKG-090 is a DIN rail mounted GSM Modem designed to be connected to various Datakom modules for internet monitoring and control through the RAINBOW SCADA monitoring system. It also supports e-mail and SMS sending.

The modem uses the 2G GPRS band. Therefore it operates anywhere, even in case of low signal strength.

The module powers-up with externally supplied 12V or 24V DC. It connects to Datakom odules through RS-232 serial port. The baud rate is automatically detected and adjustable through master modules.

The programming of DKG-090 is done through the master module. The modem itself does not require any programming and is directly compatible with all below listed Datakom modules.

D-300 Genset Controller
D-500-LITE Genset Controller
D-500 Genset Controller
D-700 Genset Controller (B&W and TFT versions
DKM-411 Network Analyzer
DFC-0124 Reactive Power Controller (all versions)

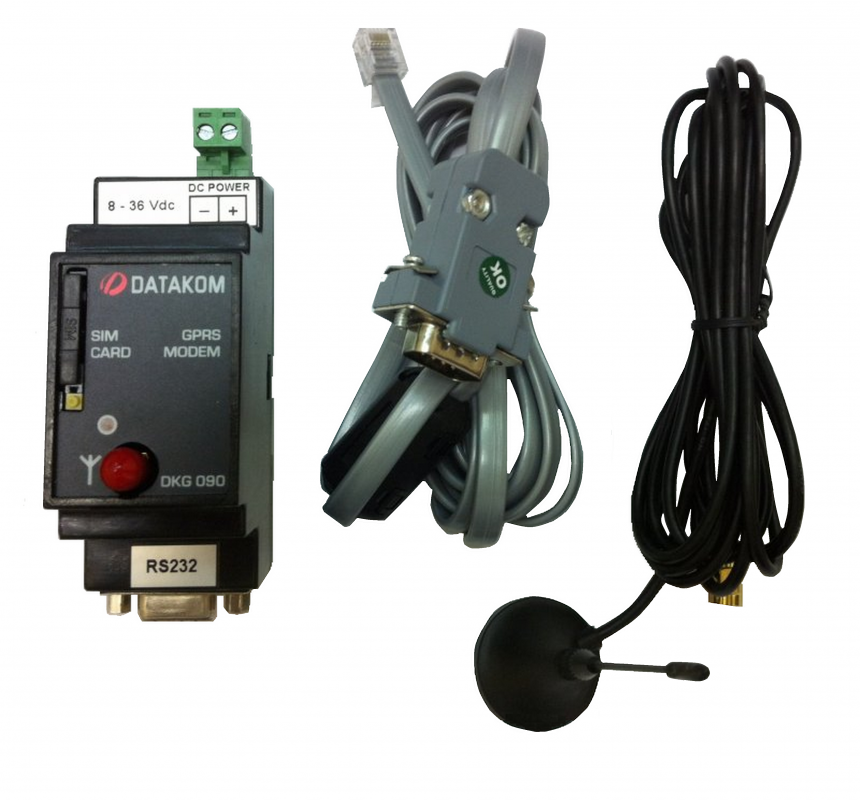

The 1800-1900MHz magnetic GSM antenna is supplied together with the modem. It has 2 meter cable and intended to be placed outside of the control panel.

The module requires a GPRS enabled SIM card for full functionality. Voice-only type SIM cards will usually not function properly.

FEATURES:
•    Power Supply: 8.0 to 36.0 V-DC.
•    Power consumption: 2W max.
•    Class of data transmission: Class 1, Class 4
•    Transmitter output power: 2W (Class 4), 1W (Class 1)
•    Data speed: max. 85.6 kbps (download & upload)
•    SIM card type: SIM 3V/1.8V, GPRS enabled
•    Antenna: Quad band, magnetic, with 2m cable
•    Module certificates: CE, FCC, ROHS, GCF, REACH

TECHNICAL SPECIFICATIONS:
Power Supply: 8.0 to 36.0 V-DC.
Power consumption: 2W max.

Description:
•    Quad-band GSM/GPRS 850/900/1800/1900MHz
•    GPRS multi-slot class 12/12
•    GPRS mobile station class B
•    Compliant to GSM phase 2/2+

Class of data transmission: Class 1, Class 4
Transmitter output power: 2W (Class 4), 1W (Class 1)
Data speed: max. 85.6 kbps (download & upload)
SIM card type: SIM 3V/1.8V, GPRS enabled
Antenna: Quad band, magnetic, with 2m cable
Module certificates: CE, FCC, ROHS, GCF, REACH
Operating frequency range: 850-900-1800-1900 MHz
RS-232 Port: 1200-115200baud
Operating temperature: -20°C to 70°C (-4 to +158 °F)
Storage temperature: -40°C to 80°C (-40 to +176°F)
Maximum humidity: 95% non-condensing.
Dimensions: 35 x 115 x 66mm (WxHxD)
Weight: 150g max.
Installation: DIN Rail mounted
Case Material: High Temperature, non-flammable ABS/PC
EU Directives Conformity:
-2006/95/EC (low voltage)
-2004/108/EC (electro-magnetic compatibility)
Norms of reference:
- EN 61010 (safety requirements)
- EN 61326 (EMC requirements)
