DATAKOM DKG-517-CAN Manual and Remote Start Controller with J1939

* All prices are retail and VAT exclusive

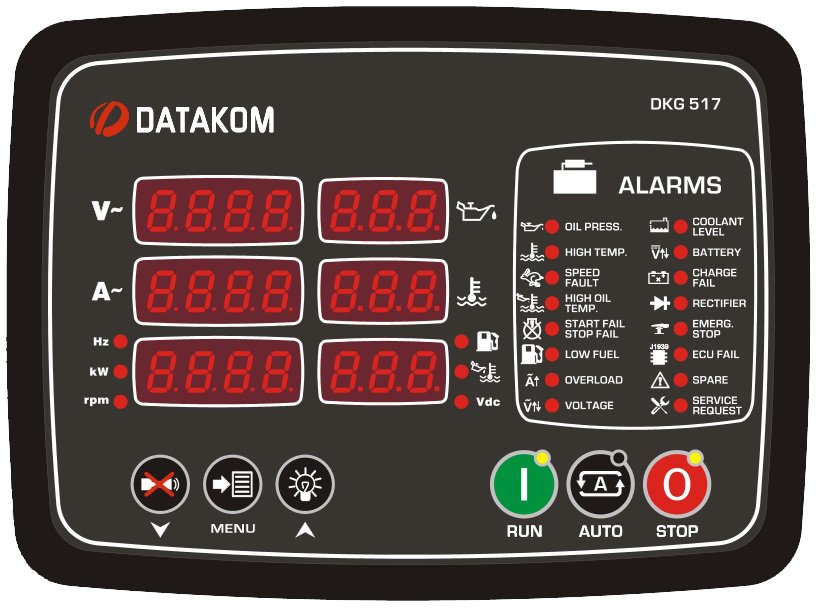

The DATAKOM DKG-517 is a comprehensive generator control controller designed to start and stop the generating set both manually and remotely. The manual control is made using the pushbuttons on the front panel. The remote control is made via the REMOTE START input signal.
The controller is available with MPU or CANBUS versions.
The CANBUS version connects to ECU controlled electronic engines providing engine control, protection and nstrumentation without extra senders.
The controller is able to initiate modem calls and send SMS messages in fault conditions through external modems.
The controller provides a comprehensive set of digitally adjustable timers, threshold levels, input and output configurations, operating sequences and engine types. All programs may be modified via front panel pushbuttons, and do not require an external controller.
Last 100 faults are stored in the event log file. The event log includes not only the date-time information, but also a comprehensive list of measured genset parameters at the time that the fault has occurred.
The WINDOWS based RAINBOW program allows remote monitoring and control.
The controller supports MODBUS protocol enabling communication with PLCs and building management systems. The MODBUS protocol is also supported through GSM and PSTN modems.

FEATURES:
•    True RMS measurements
•    ECU connection through J1939 CAN option
•    J1939 ECU warnings displayed as text
•    MPU input option
•    Dual genset mutual standby operation
•    Event logging with time stamp and measurements
•    Battery backed-up real time clock
•    Built in daily / weekly / monthly exerciser
•    Weekly operation schedule programs
•    Field adjustable parameters
•    RS-232 serial port
•    Free MS-Windows Remote monitoring SW
•    GSM and PSTN modem support
•    GSM SMS message sending on fault
•    MODBUS communications
•    Multiple language support
•    Customer logo display capability
•    10ADC relay outputs
•    Configurable analogue inputs: 4
•    Configurable digital inputs: 7
•    Configurable relay outputs: 2
•    Total relay outputs: 4
•    I/O expansion capability
•    Plug-in connection system


WE DO NOT SHIP THIS DATAKOM PRODUCT TO USA AND CANADA
