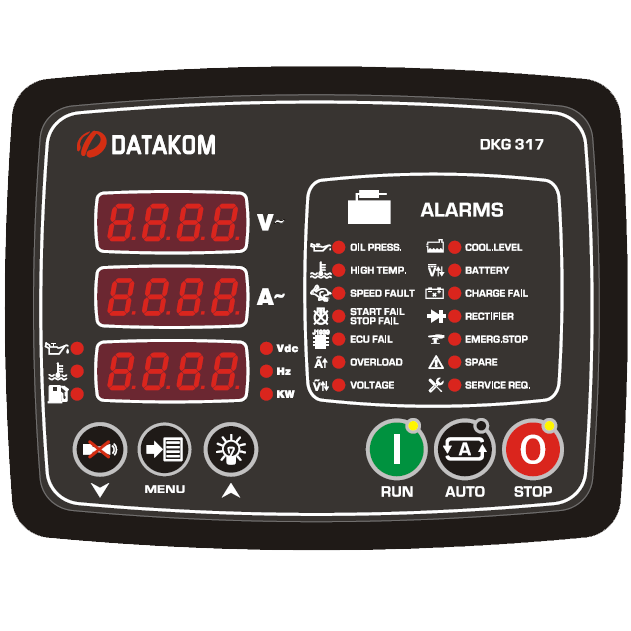

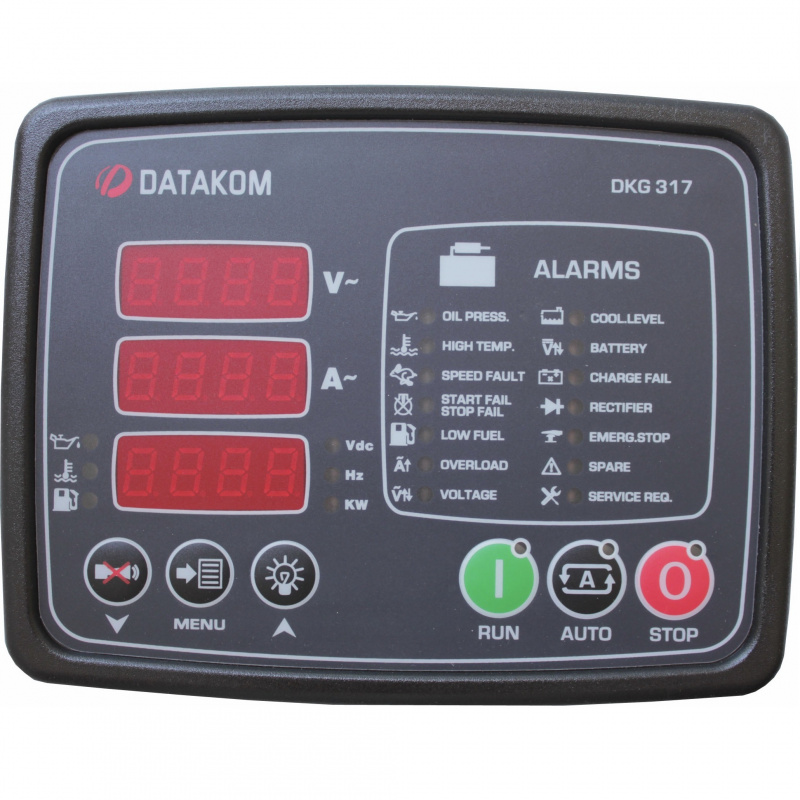

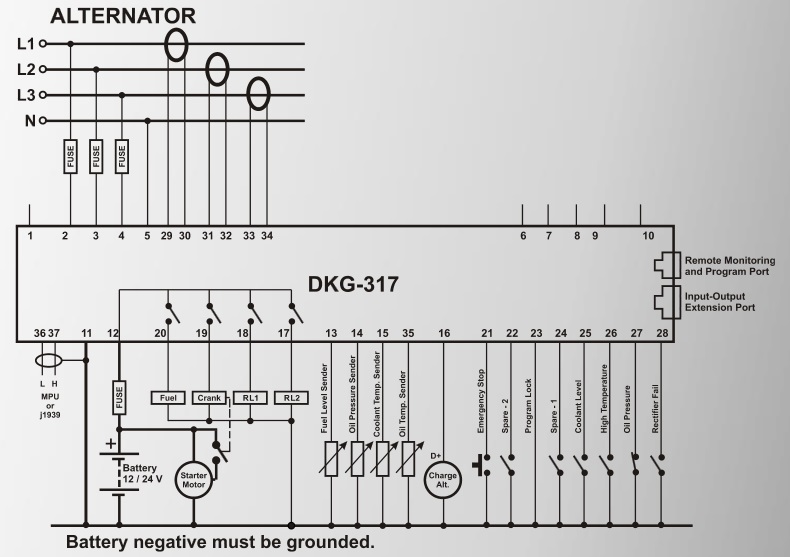

The DKG-317 is a comprehensive generator control unit designed to start and stop the generating set both manually and remotely. The manual control is made using the pushbuttons on the front panel. The remote control is made via the REMOTE START The unit is available with MPU or CANBUS versions.
The CANBUS version connects to ECU controlled electronic engines providing engine control, protection and instrumentation without extra senders. The unit is able to initiate modem calls and send SMS messages in fault conditions through external modems.
The unit provides a comprehensive set of digitally adjustable timers, threshold levels, input and output configurations, operating sequences and engine types.
All programs may be modified via front panel pushbuttons, and do not require an external unit.
Last 100 faults are stored in the event log file.
The event log includes not only the date-time information, but also a comprehensive list of measured genset parameters at the time that the fault has occurred.
The WINDOWS based RAINBOW program allows remote monitoring and control The unit supports MODBUS protocol enabling communication with PLCs and building management systems.
The MODBUS protocol is also supported through GSM and PSTN modems.
MEASUREMENTS:
Generator Volts: L1-N, L2-N, L3-N
Generator Volts: L1-L2, L2-L3, L3-L1
Generator Amps: L1, L2, L3
Generator total kW
Generator total pf
Generator Frequency
Engine rpm
Battery Voltage
Engine Coolant Temperature
Engine Oil Pressure Fuel Level
Engine Oil Temperature
STATISTICS:
The unit provides a set of non resettable incremental counters for statistical purposes.
The counters consist on:
- total engine hours
- total genset KWh
- engine hours to service
- time to service
- total engine cranks
- total genset runs
These counters are kept in a non-volatile memory and are not affected from power failures
EVENT LOGGING:
The unit records last 100 events with date-time stamp and a total of 18 measured parameters.
DIGITAL INPUTS:
The unit has 7 configurable digital inputs. Each input is fully configurable with selectable names, alarm type, polling, latching and contact type.
ANALOG INPUTS:
Engine analog inputs are provided for coolant temperature, oil pressure, oil temperature and fuel level. The inputs have programmable sensor characteristics so that they are suitable for any type and brand of sensors.
RELAY OUTPUTS:
The unit provides 4 relay outputs and 2 of them have programmable functions, selectable from a list. Any function or alarm condition may be output as a relay output. Using two Relay Expansion Modules, the number of relays may be increased to 20, 16 of them being volt-free contacts.
TELEMETRY AND REMOTE PROGRAMMING:
The unit provides the user with large telemetry facilities via its standard RS-232 serial port, connecting either to a PC, PLC or a GSM or PSTN modem. It supports both RAINBOW and MODBUS communication protocols. The standard PC software offers local and modem operation capabilities as well as modem networking feature.
The PC program is used for below purposes:
- parameter upload/download
- remote monitoring and control
- diagnostics and analysis
The MODBUS interface allows the unit to be integrated in building management systems. The MODBUS protocol is also supported through GSM and PSTN modems.
TECHNICAL SPECIFICATIONS:
Alternator voltage: 0 to 300 V-AC (Ph-N)
Alternator frequency: 0-100 Hz.
DC Supply Range: 9.0 to 33.0 V-DC
Cranking dropouts: survives 0 V for 100ms.
Typical Standby Current: 100 mA-DC
Maximum Operating Current: 250 mA-DC (Relay outputs open)
DC Outputs: 10A @ 28V
Charge excitation: min 2 Watts
Magnetic pickup input:: 0.5 – 30 V-AC.
Magnetic pickup frequency: 10 KHz max.
Current inputs: from CTs, .../5A. Max load 0.7VA per phase.
Analog input range: 0-5000 ohms.
Serial port: RS-232, 9600 bauds, no parity, 1 bit stop
Operating temp.: -40°C (-40°F) to 70°C (158°F).
Storage temp.: -55°C (-67°F) to 80°C (176°F).
Maximum humidity: 95% non-condensing.
Dimensions: 172x 134 x 46 mm (WxHxD)
Panel Cut-out Dimensions: 151x111 mm minimum.
Weight: 300 g (approx.)
Case Material: High Temperature ABS/PC (UL94-V0)
IP Protection: IP65 from front panel, IP30 from the rear
Installation: Flat surface mounting on a Type 1 enclosure.
CE Conformity reference standards:
EN 61010 (safety requirements)
EN 61326 (EMC requirements)
UL / CSA Conformity: certificate # 20110527-E314374
UL 508, Edition 17
UL 2200, 1st Edition.
UL 840 Edition 3
CSA C22.2 NO. 14 - Edition 10
