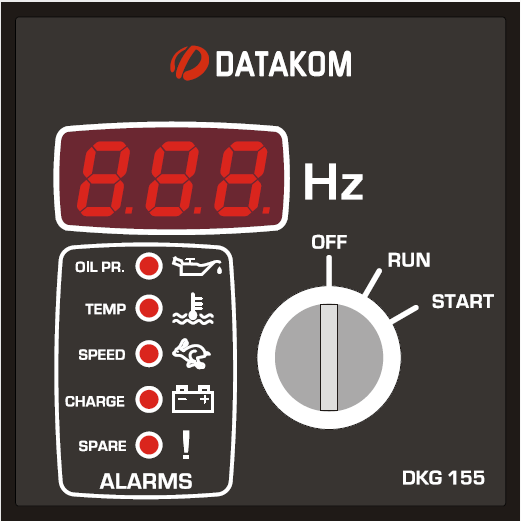

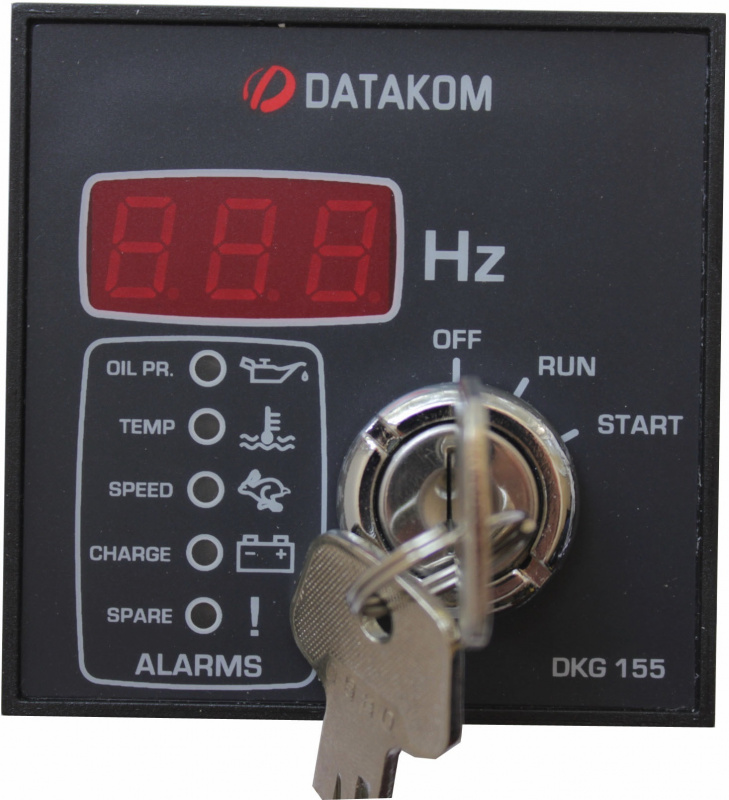

DATAKOM DKG-155 Manual start generator control panel

* All prices are retail and VAT exclusive

The DATAKOM model DKG-155 is a microprocessor controlled unit designed to start and stop the genset manually using the key switch on the front panel. In the OFF position, the DC supply is removed from the module, thus zero power consumption is achieved.

The unit powers up when the RUN position on the front panel is selected. This will also energize the fuel solenoid relay. The engine is started using the next spring-loaded position marked START. Once the engine has started, the switch should be released. To shut down the engine, select the OFF position on the switch.

When the engine is running, the unit monitors fault conditions and shuts-down the engine automatically in the occurrence of an alarm.

The occurrence of below fault conditions will cause the engine to be stopped immediately:
-Overspeed,
-Underspeed,
-High engine temperature,
-Low oil pressure,
-Auxiliary shutdown.

The limits for the correct generator frequency are 30 to 57 Hz for 50Hz operation and, 30 to 68Hz for 60Hz operation. The unit uses high current two part connectors for easy replacement.

FEATURES:
• Microprocessor controlled
• Manual fuel control and start
• Automatic shutdown on fault condition
• Survives cranking dropouts
• Digital display of generator frequency
• High engine temperature protection
• Low oil pressure protection
• Overspeed-underspeed protection
• Spare fault input
• Alarm output
• Two part connectors for easy replacement
• Standard panel dimensions (72x72mm)
• Low failure rate

TECHNICAL SPECIFICATIONS:
Alternator Voltage: 15 to 300 V-AC
Alternator Frequency: 50 or 60 Hz nominal.
Overspeed: nominal frequency + 14%
                  (+24% overshoot)
Underspeed: 30Hz
DC Supply Range: 9 to 33 V-DC.
Current consumption: 150mA max. (Relay outputs open).
Charge fail threshold: 6 V-DC.
Charge excitation current: via 220 ohms resistor connected to the FUEL output.
Operating temp.: -20°C (-4°F) to 70°C (158°F).
Storage temp.: -30°C (-22°F) to 80°C (176°F).
Maximum humidity: 95% non-condensing.
Dimensions: 72x72x52mm (WxHxD)
Panel cutout dimensions: 68x68 mm
Weight: 220g (approx.)
Installation: Front panel mounted. Retaining steel spring provided.



WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
