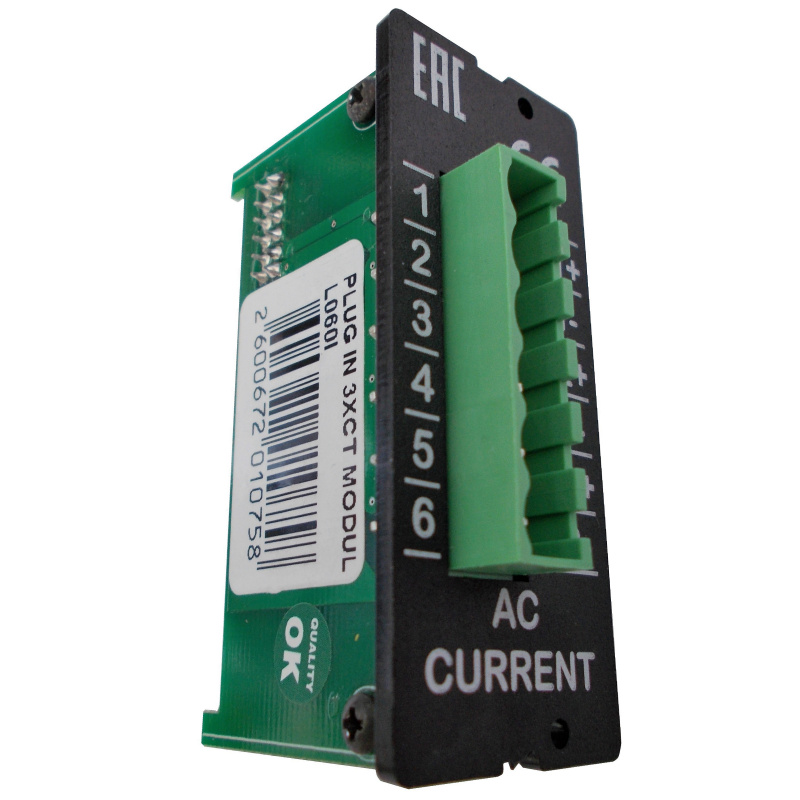

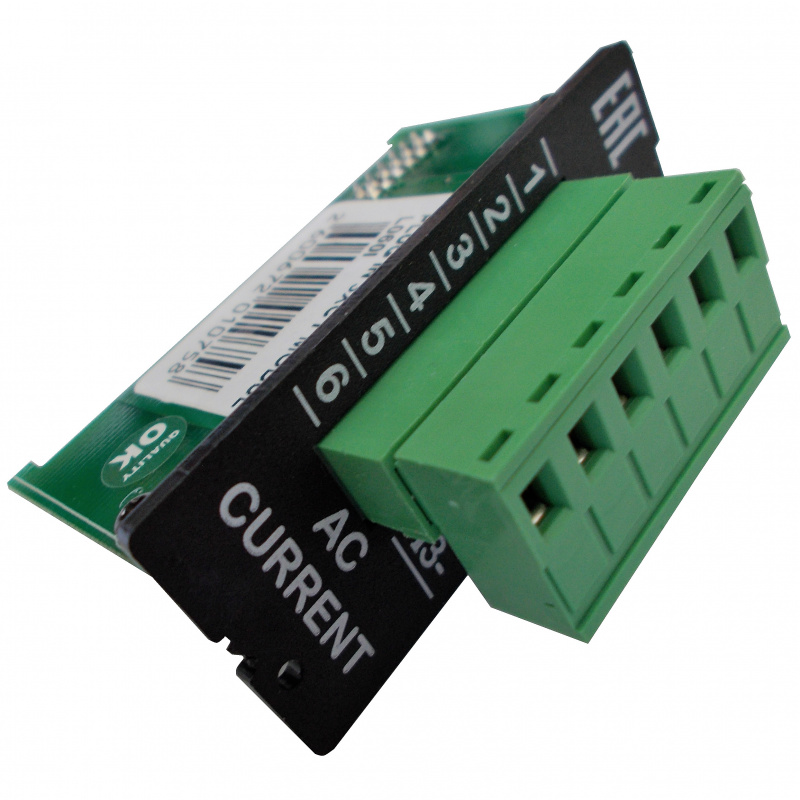

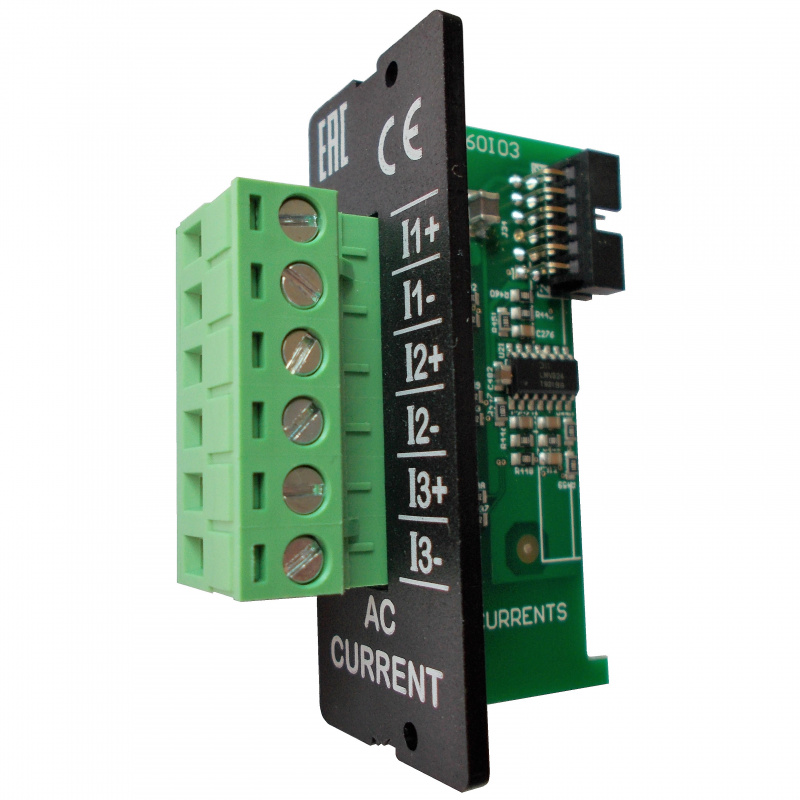

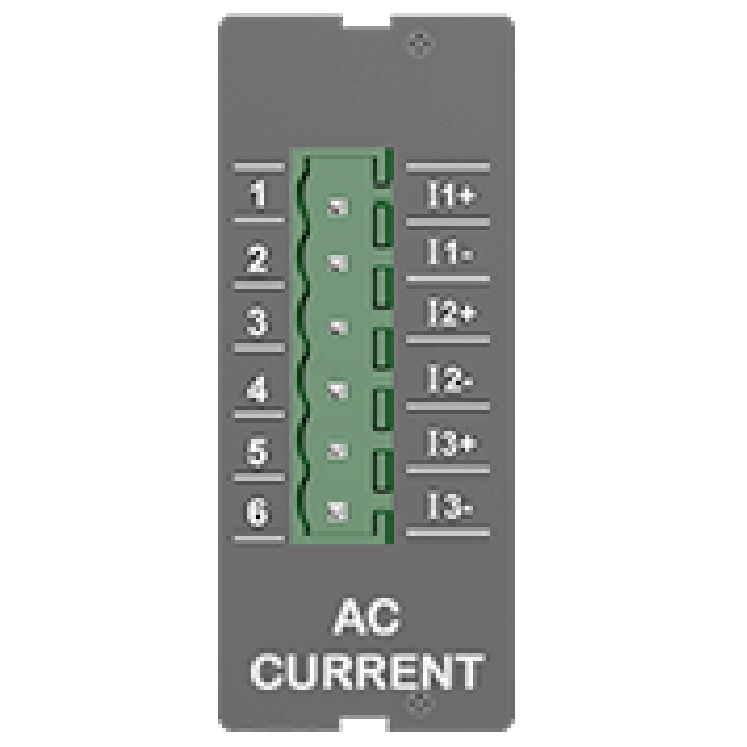

Datakom Mains Current transformer input Module for D-500,700 MK2 Controllers (L060I)

3 X MAINS CURRENT TRANSFORMER INPUT PLUG-IN MODULE

This mains current transformer input plug-in module is specially designed for Datakom D-500, 700 MK2 controllers.
It includes 3 additional current transformer inputs that are necessary for mains inputs current monitoring in some generator/mains parallel work applications where the both alternator and mains currents must be measured simultaneously.

Measurement method: True RMS
Sampling rate: 8000 Hz
Harmonic analysis: up to 31th harmonic
Supported topologies: 3 ph 4 wires star,
              3 ph 4 wires delta,
              3 ph 3 wires delta
              3 ph 3 wires delta L1-L2
              3 ph 3 wires delta L2-L3
              2ph 3 wires L1-L2
              2ph 3 wires L1-L3
              1 ph 2 wires
CT secondary rating: 5A
Measurement range: 5/5 to 5000/5A minimum
Input impedance: 15 milliohm
Burden: 0.375W
Maximum continuous current: 6A
Measurement range: 0.1 to 7.5A
Common mode offset: Max 5VAC between BAT- and any CT terminal.
Display resolution: 1A
Accuracy: 0.5% + 1 digit @ 5A (± 4.5A @ 5/500A full range)
