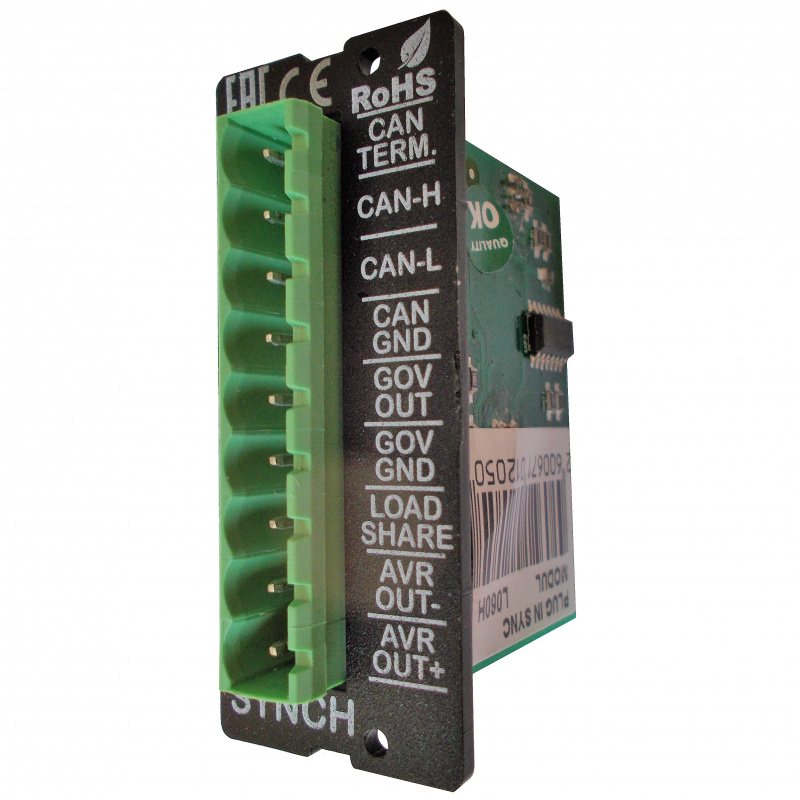

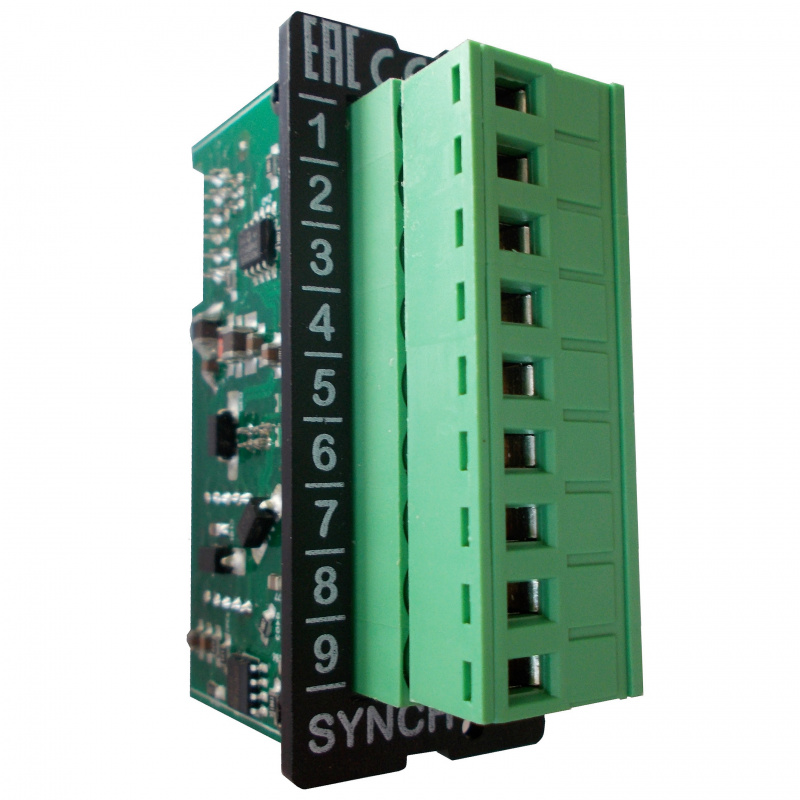

DATAKOM Genset Synchronization Module for D-500,700 MK2 Controllers (L060H)

SYNCHRONIZATION PLUG-IN MODULE

This synchronization module is specially designed for Datakom D-500, 700 MK2 controllers.
It includes all necessary functionality for generator synchronization purposes.

1.     ANALOG AVR CONTROL OUTPUT
Structure: Isolated analog output, ±3 VDC
Connection: 2 wires
Output Impedance: 270 ohms
Isolation Voltage: 1000 VAC, 1 minute
Precision: 12 bits
Rest point: Adjustable through program parameter
Sweep Range: Adjustable through program parameter

2.    ANALOG GOVERNOR CONTROL OUTPUT
Structure: Isolated analog output, 0-10 VDC
Reference: Battery negative
Output Impedance: 1000 ohms
Precision: 12 bits
Rest point: Adjustable through program parameter
Sweep Range: Adjustable through program parameter

3.    DATALINK-CANBUS PORT
Structure: CANBUS, isolated.
Connection: 4 wires (DATALINK-H, DATALINK-L, GND, TERMINATION).
Data rate: 250 kbps standard (adjustable between 50 and 500 kbps)
Termination: 120 ohms resistor internally connected to DATALINK-H. The TERMINATION is to be connected to DATALINK-L in order to terminate the Datalink bus.
Isolation voltage: 1000 VAC, 1 minute
Common mode voltage: -0.5 VDC to +15 VDC, internally clamped by transient suppressors.
Max distance: 200m with 120 ohm balanced cable
IMPORTANT NOTES:
        The Datalink cable shield should be grounded from one end only.
        The Datalink bus should be terminated from both ends:

4.    ANALOG LOAD SHARE SIGNAL
Structure: Non-isolated analog input & output, 0-10 VDC
Reference: Battery negative
Output Impedance: 1000 ohms
Precision: 12 bits
Rest point: Adjustable through program parameter
Sweep Range: Adjustable through program parameter
