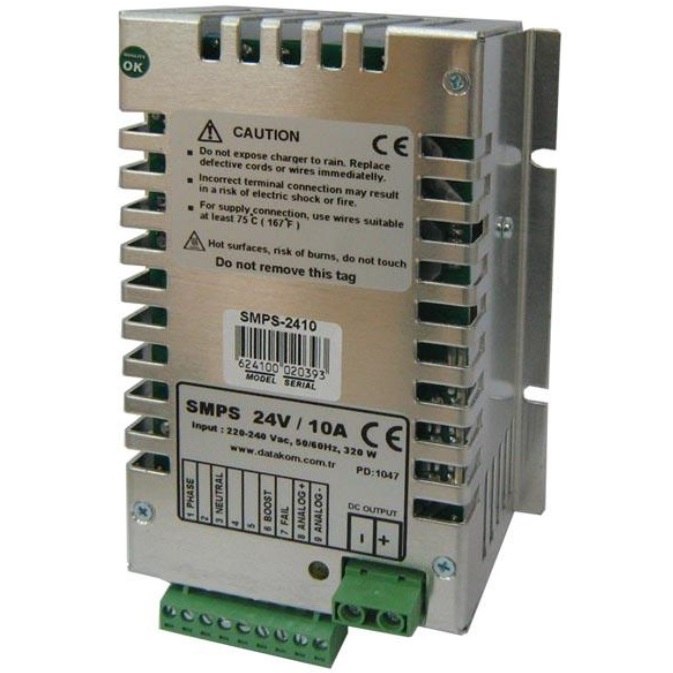

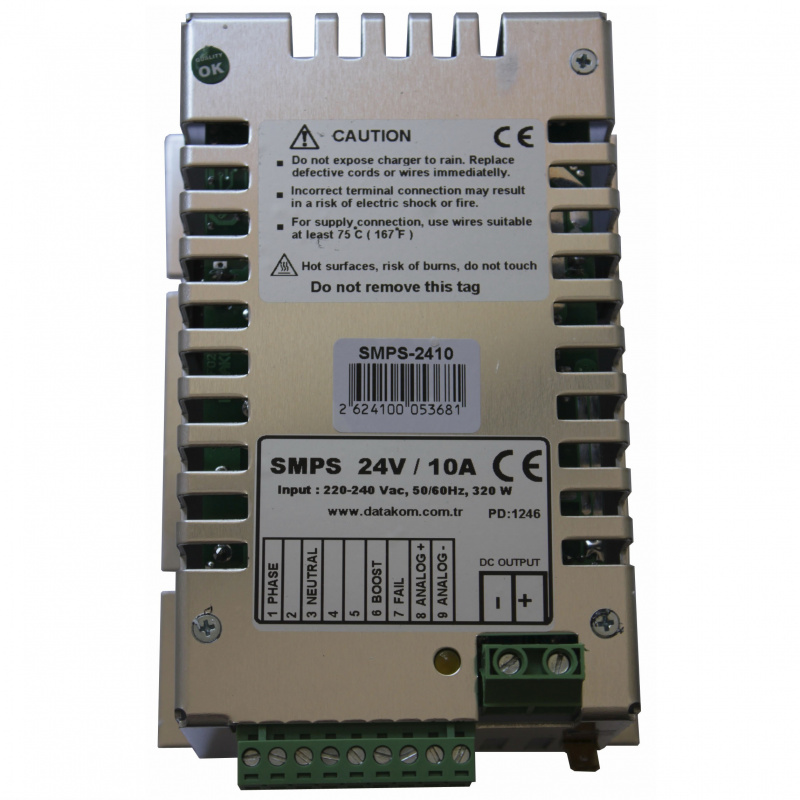

DATAKOM SMPS series are fixed output voltage, current limited lead acid battery chargers specially designed for permanent connection to genset starter batteries.
They maintain the batteries fully charged, without overcharging or gassing. Thanks to their continuous DC outputs they may also be used in a vide range of industrial applications where DC power is required.
When the battery voltage is below the float charge level, the charger provides constant current, nearly equal to the rated output current allowing a rapid recovery of the missing charge. When the battery voltage reaches the float level, the charger switches to constant voltage charge mode and maintains the battery fully charged, providing the maximum battery life.
The unit has overload and short circuit protections. They do not need disconnection during cranking. The high temperature protection of the unit reduces the output current in case of overheating.
The chargers are able to operate in parallel with the engine’s charge alternator and other battery chargers. Multiple units may be connected in parallel in order to obtain higher current ratings.
The wide input voltage range allows the chargers to be used in most countries.
Charger metal case is neutral isolated thus it could be powered whether by phase-neutral or phase-phase AC voltage.
• 100 KHz switchmode architecture
• Float charging system
• Constant voltage output
• Current limited
• Rugged design for industrial environments
• Wide operating voltage range
• Rectifier fail output
• Boost charge input
• Short circuit protection
• Overload protection
• High temperature protection
• Analog output for charge current:0-10 Volt-DC (0-10 A)
WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
