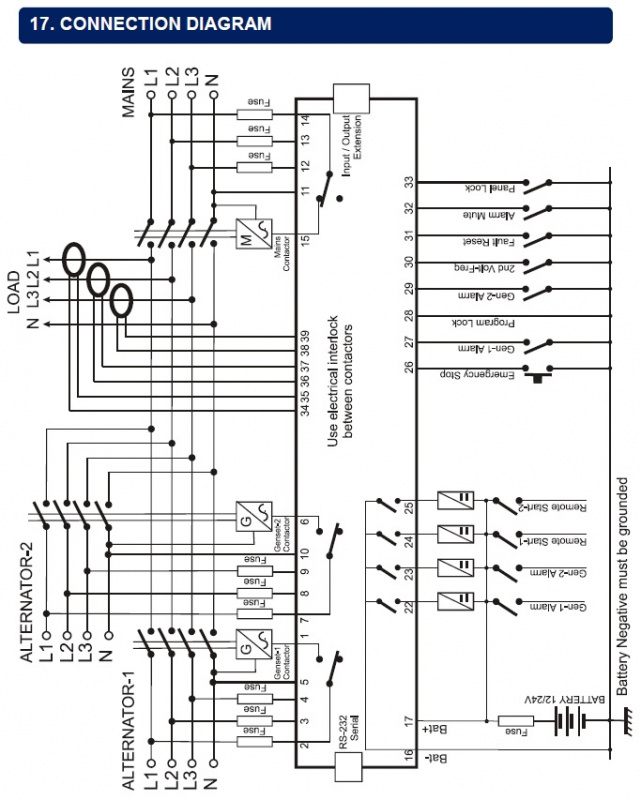

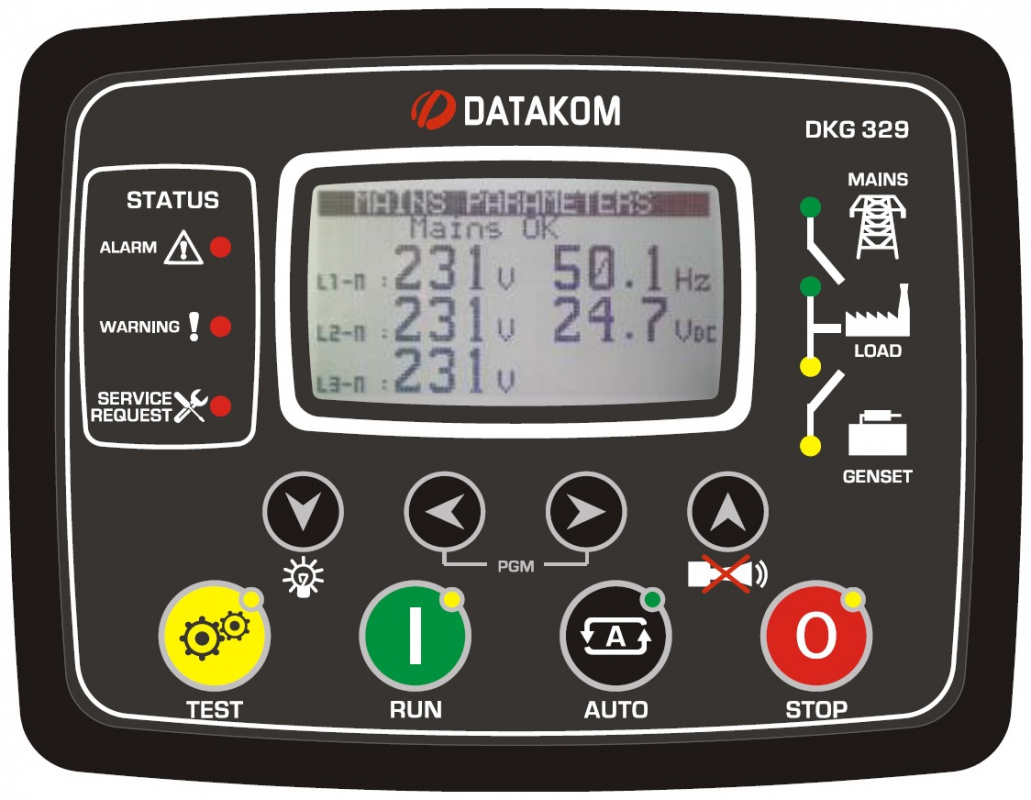

The DKG-329-DUAL iis designed to control a 3-phase transfer panel featuring 1 mains and 2 gensets. It monitors 3-phase mains voltages, sends remote start commands to generating sets 1 and 2 and controls the changeover of both generator and mains contactors.
The unit provides equal aging of gensets, running the next genset at each mains failure and periodically switching gensets during mains failures.
If a fault condition occurs, the unit disables the remote starting of the corresponding genset automatically and indicates the failure with led lamp and text.
The unit provides a comprehensive set of digitally adjustable program parameters. The unauthorized access to program parameters is prevented by a 3 level password system. All programs may be modified via front panel pushbuttons and do not require any external unit.
Last 100 faults are stored in the event log file. The event log includes not only the date-time information, but also a comprehensive list of measured parameters at the time that the fault has occurred.
The WINDOWS based RAINBOW program allows remote monitoring and control.
The unit supports MODBUS protocol enabling communication with PLCs and building management systems. The MODBUS protocol is also supported through GSM and PSTN modems.
The unit offers multiple language support.
• True RMS measurements
• Automatic contactor control for 2xGEN+1xMAINS
• Equal aging of gensets
• Automatic genset switching
• Load shedding, dummy load
• Event logging with time stamp and measurements
• Battery backed-up real time clock
• Built in daily / weekly / monthly exerciser
• Weekly operation schedule programs
• Field adjustable parameters
• RS-232 serial port
• Free MS-Windows Remote monitoring SW
• GSM and PSTN modem support
• GSM SMS message sending on fault
• MODBUS communications
• Multiple language support
• Customer logo display capability
• 16 Amp contactor outputs
• 1 Amp DC semiconductor control outputs
• Configurable digital inputs: 7
• Configurable digital outputs: 2
• Total digital outputs: 7
• I/O expansion capability
• Plug-in connection system
• Sealed front panel
Alternator voltage: 0 to 300 V-AC (Ph-N)
Alternator frequency: 0-100 Hz.
Mains voltage: 0 to 300 V-AC (Ph-N)
Mains frequency: 0-100 Hz.
DC Supply Range: 9.0 to 33.0 V-DC
Cranking dropouts: survives 0 V for 100ms.
Typical Standby Current: 100 mA-DC
Maximum Operating Current: 200 mA-DC (Relay outputs open)
Generator/Mains Contactor Relay Outputs: 16 A / 250V
DC Outputs: 1A @ 28V protected semiconductor output
Current inputs: from CTs, .../5A. Max load 0.4VA per phase.
Serial port: RS-232, 9600 bauds, no parity, 1 bit stop
Operating temp.: -20°C (-4°F) to 70 °C (158°F).
Storage temp.: -40°C (-40°F) to 80 °C (176°F).
Maximum humidity: 95% non-condensing.
Dimensions: 172 x 134 x 46 mm (WxHxD)
Panel Cut-out Dimensions: 151x111 mm minimum.
Weight: 300 g (approx.)
Case Material: High Temperature ABS/PC (UL94-V0)
IP Protection: IP65 from front panel, IP30 from the rear
Installation: Flat surface mounting on a Type 1 enclosure.
CE Conformity reference standards:
EN 61010 (safety requirements)
EN 61326 (EMC requirements)
UL / CSA Conformity: certificate # 20110527-E314374
UL 508, Edition 17
UL 2200, 1st Edition.
UL 840 Edition 3
CSA C22.2 NO. 14 - Edition 10
