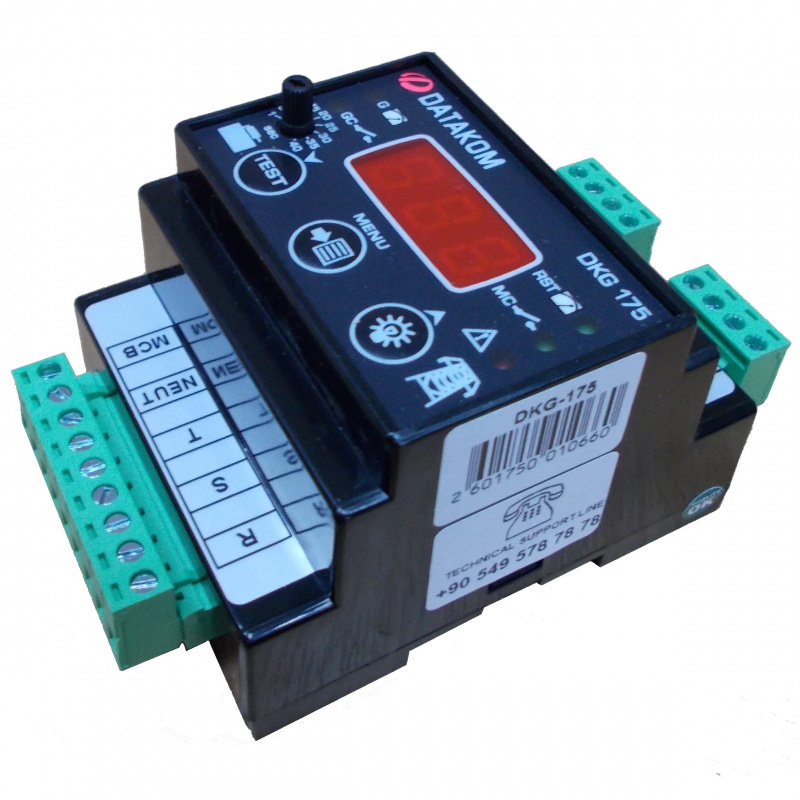

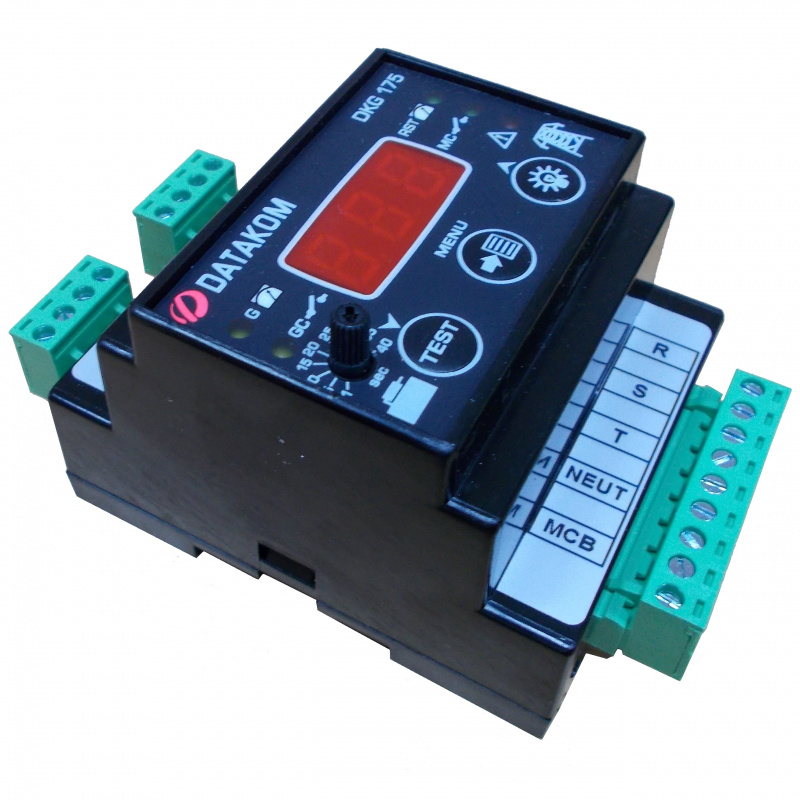

DATAKOM DKG-175 DIN RAIL MOUNTED ATS CONTROLLER WITHOUT DC SUPPLY
The DATAKOM model DKG-175 is a DIN Rail mounted ATS controller not requiring DC supply.

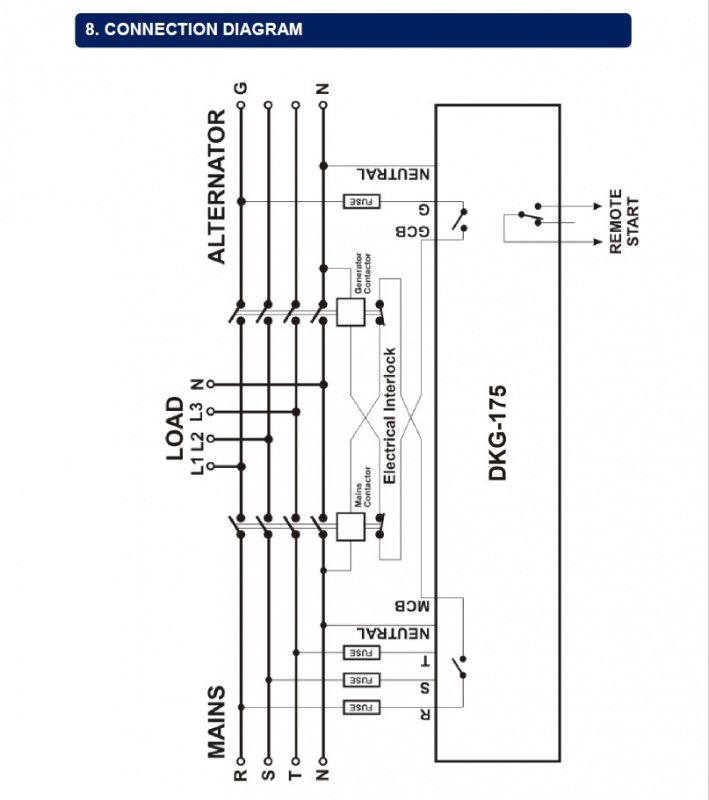

The unit monitors 3-phase mains voltages, sends remote start command to the generating set and performs changeover of both generator and mains contactors.
The unit is microprocessor controlled and offers flexible of use thanks to adjustable parameters.

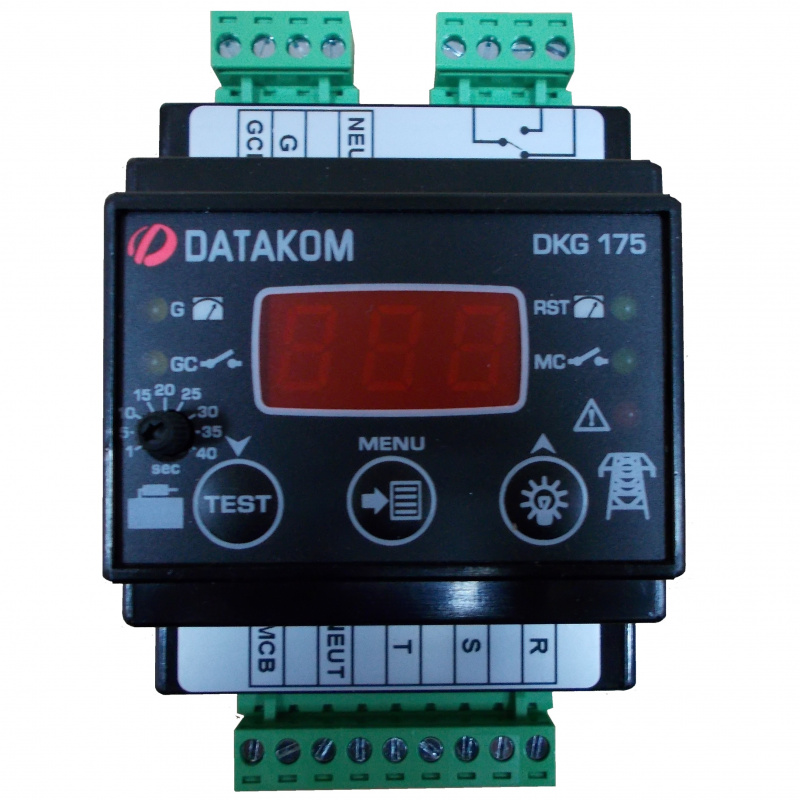

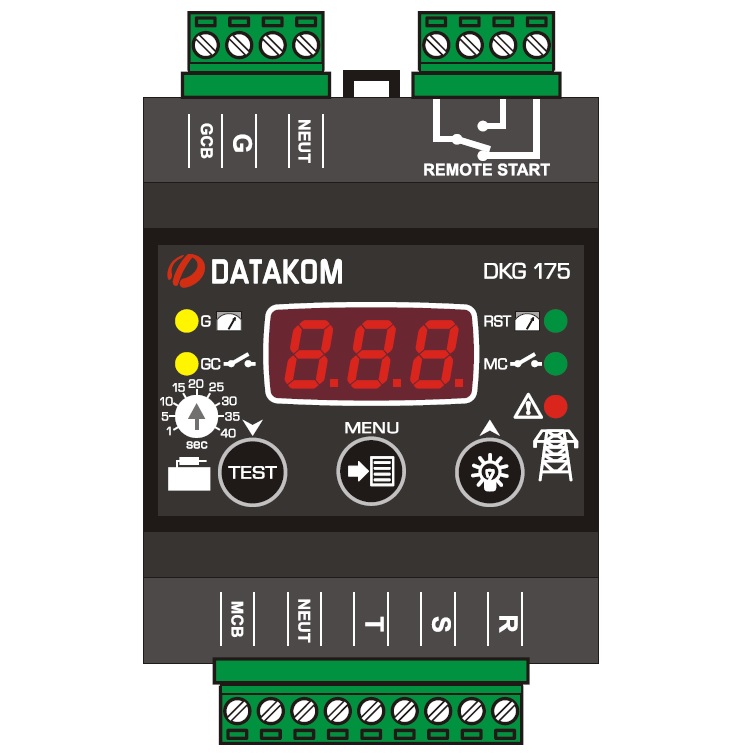

The front panel leds provide information about mains and generator power availability as well as contactor positions.
The TEST mode allows generator testing while mains is present.
• DIN Rail mounted
• No DC supply required
• Microprocessor controlled
• Adjustable parameters
• 10A/250VAC MCB and GCB outputs
• 10A/28VDC/250VAC remote start output
• Isolated mains and genset inputs
• TEST mode available
Alternator voltage: 170-300 V-AC (Phase-Neutral)
Mains voltage: 170-300 V-AC configurable (Phase- Neutral)
Mains frequency: 30 – 70 Hz configurable
Generator contactor timer: 1 - 40 sec. configurable
Mains contactor timer: 0 - 999 sec configurable
Mains waiting timer: 0 - 999 sec configurable
Mains fail timer: 0 - 999 sec configurable
Cooldown timer: 0 - 999 sec configurable
Remote start delay: 0 - 999 sec configurable
Mains contactor output: 10A @ 250V-AC
Generator contactor output: 10A @ 250V-AC
Remote start output: 10A @ 250V-AC/28V-DC
Operating temperature: -30°C to 70°C
Storage temperature: -30°C to 80°C
Maximum humidity: 95% non-condensing.
Dimensions: 70x115x66mm (WxHxD)
Weight: 180g (approx.)
Installation: DIN Rail mounted.
Case material: High temperature, non-flammable ABS/PC
IP protection: IP20
The unit conforms to the EU directives
-2006/95/EC (low voltage)
Norms of reference:
EN 61010 (safety requirements)
EN 61326 (EMC requirements)
