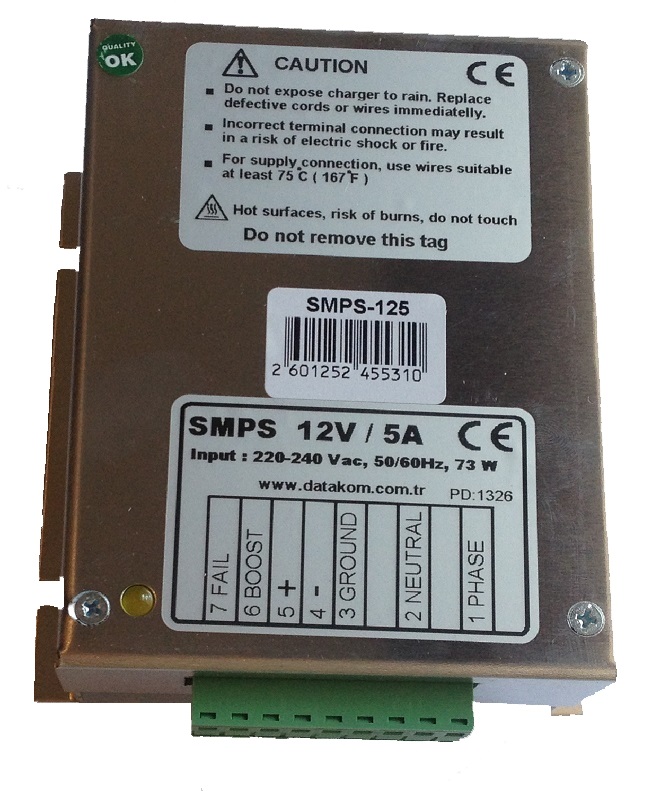

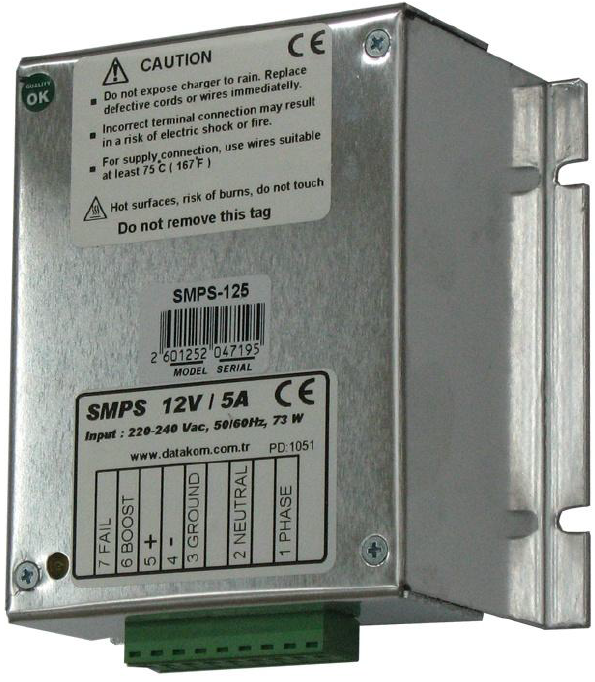

DATAKOM SMPS-125 Generator start battery charger / stabilized power supply (12V/5A)

* All prices are retail and VAT exclusive

DATAKOM SMPS series are fixed output voltage, current limited lead acid battery chargers specially designed for permanent connection to genset starter batteries.
They maintain the batteries fully charged, without overcharging or gassing. Thanks to their continuous DC outputs they may also be used in a vide range of industrial applications where DC power is required.
The chargers are designed in switchmode technology. Their rugged design allows surviving in harsh electromagnetic environments found in automotive industry.
The unit has overload and short circuit protections. The high temperature protection of the unit reduces the output current in case of overheating. The low weight of the unit makes it ideal for use in highly vibrating generator control panels. The small dimensions allow compact panel design.
The chargers are able to operate in parallel with the engine’s charge alternator and other battery chargers. Multiple units may be connected in parallel in order to obtain higher current ratings.
The wide input voltage range allows the chargers to be used in most countries.
Charger metal case is neutral isolated thus it could be powered  whether by phase-neutral or phase-phase AC voltage.

-100 KHz switchmode architecture
-Float charging system
-Constant voltage output
-Current limited
-Rugged design for industrial environments
-Wide operating voltage range
-Rectifier fail output
-Boost charge input
-Short circuit protection
-Overload protection
-High temperature protection
-Plug-in connection system
