DATAKOM D-500-LITE Multifunctional Generator Controller with MPU + J1939 + RS485 + GSM Modem

* All prices are retail and VAT exclusive

The DATAKOM D-500 is a next generation genset control unit combining multi-functionality and wide communication possibilities together with a reliable and low cost design.
The unit complies and mostly exceeds world’s tightest safety, EMC, vibration and environmental standards for the industrial category.
Software features are complete with easy firmware upgrade through USB port.

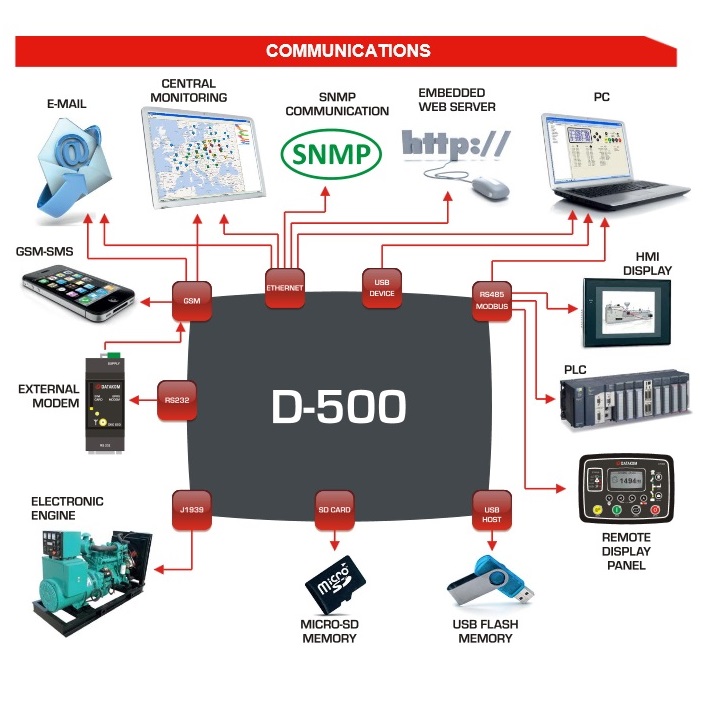

The Windows based PC software allows monitoring and programming through USB, RS-485, RS-232, Ethernet and GPRS.
The Rainbow Scada web service allows monitoring and control of an unlimited number of gensets from a single central location.

• AMF unit
• ATS unit
• Remote start controller
• Manual start controller
• Engine controller
• Remote display panel
• Harmonic analysis of V & I

• 4-band GPRS modem (optional)
• USB Device
• RS-485 (2400-57600baud)
• RS-232 (2400-57600baud)
• J1939-CANBUS
• Geo-locating through GSM
• GPS support (RS-232)
• Internet Central Monitoring
• SMS message sending
• E-mail sending
• Free PC software: Rainbow Plus
• Modbus RTU

DC Supply Range: 9.0 to 33.0 V-DC.
DC power consumption:
- 250 mA-DC typical @12V-DC
- 125 mA-DC typical @24V-DC
- 500 mA-DC max. @12V-DC
- 250 mA-DC max. @24V-DC
Alternator voltage: 0 to 330 V-AC (Ph-N), 0 to 570V Ph-Ph
Alternator frequency: 0-500 Hz.
Mains voltage: 0 to 330 V-AC (Ph-N) , 0 to 570V Ph-Ph
Mains frequency: 0-500 Hz.
Current Inputs: from current transformers. ../5A.
CT Range: 5/5A to 5000/5A
VT Range: 0.1/1 to 6500 / 1
kW Range: 0.1kW to 65000 kW
- Voltage: 0.5%+1digit
- Current: 0.5%+1 digit
- Frequency: 0.5%+1 digit
- Power(kW,kVAr): 1.0%+2digit
- Power factor: 0.5 %+1digit
Digital inputs: input voltage 0 to 36 V-DC.
Analog input range: 0-5000 ohms.
Mains and genset contactor outputs: 16Amps@250V
DC Outputs: Relay outputs, positive switching NO contacts. 10Amps@28V-DC
Cranking dropouts: survives 0V for 100ms.
Magnetic pickup voltage: 0.5 to 30V-RMS.
Magnetic pickup frequency: 10 to 10000 Hz.
Charge Alternator Excitation: 100mA @12VDC, 200mA @24VDC
USB Device: USB 2.0 Full speed
USB Host: USB 2.0 Full speed
RS-485 Port: selectable baud rate
RS-232 Port: selectable baud rate
Operating temperature: -20°C to 70°C (-4 to +158 °F).
Storage temperature: -40°C to 80°C (-40 to +176°F).
Maximum humidity: 95% non-condensing.
IP Protection: IP54 from front panel, IP30 from the rear.
Dimensions: 200 x 148 x 46mm (WxHxD)
Panel Cut-out Dimensions: 176 x 121 mm minimum.
Weight: 450 g (approx.)
Case Material: High Temperature, non-flammable, ROHS compliant ABS/PC
Mounting: Flush mounted with rear retaining plastic brackets.
EU Directives Conformity:
-2006/95/EC (low voltage)
-2004/108/EC (electro-magnetic compatibility)
Norms of reference:
- EN 61010 (safety requirements)
- EN 61326 (EMC requirements)
UL Compatibility: UL 6200, Controls for Stationary Engine Driven Assemblies (Certificate Number - 20140725-E314374)
CSA Compatibility: CAN/CSA C22.2 No. 14-2005 – Industrial Control Equipment
