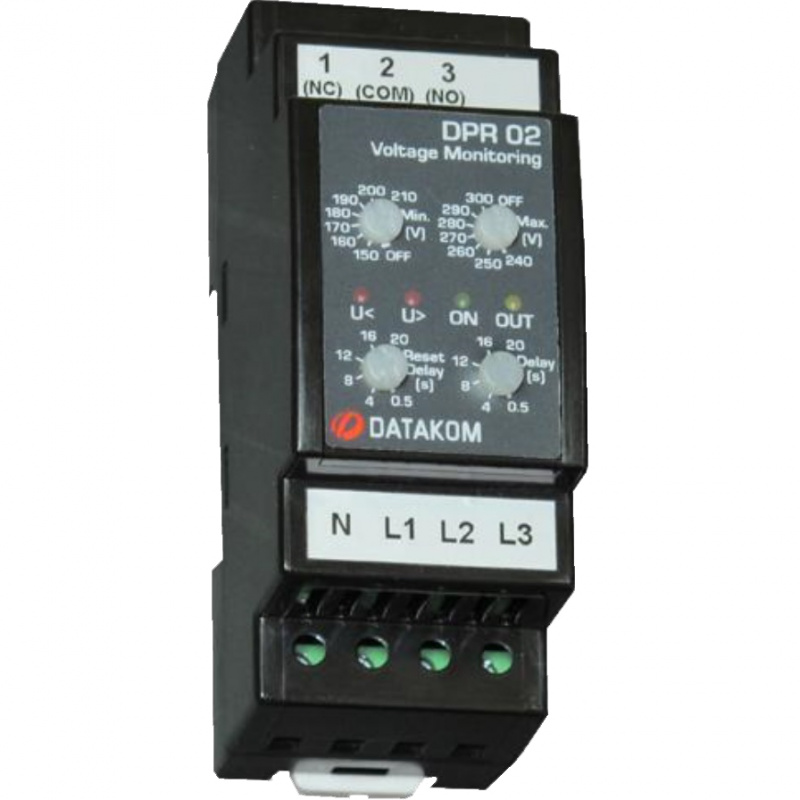

DATAKOM DPR-02 Voltage Protection Controller, L-N, UV/OV

* All prices are retail and VAT exclusive

DPR-02 relay is a three-phase (line to neutral) voltage protection relay designed to be used for over-voltage, under-voltage and phase rotation protection in distribution substations, generators, motors, transformers and capacitors in compensation systems.

It offers adjustable over / under voltage limits together with adjustable trip and reset delays. The unit has also phase sequence protection.

Both over voltage limit(Max) and under voltage limit(Min) can be adjusted or disabled via trimmers on the front panel of the device. Delay timers are adjusted through related trimmers.

FEATURES:
DIN Rail mounted
Adjustable under voltage limit (L-N)
Adjustable over voltage limit (L-N)
Adjustable TRIP and RESET Delays
Phase sequence protection
Phase failure protection
Overvoltage protection
Insufficient supply protection
6A/277VAC relay output.

TECHNICAL SPECIFICATIONS:
Nominal Supply Voltage: 230V-AC (L-N)
Supply Voltage Range: 150-300 V-AC (L-N)
Supply type: Capacitive, 3 phase
Frequency Range: 47-63Hz
Power Consumption: 30VA / 2W (max)
Measurement method: True RMS, line to neutral
Voltage Adjustment Accuracy: 3 %
Repetition Accuracy: 0.5 %
Over-Voltage Trip: 240-300 V-AC (L-N) adjustable
Under-Voltage Trip: 150-210V-AC (L-N) adjustable
Trip Delay Setup: 0.5 – 20 sec. adjustable
Reset Delay Setup: 0.5 – 20 sec. adjustable
Relay Output: 6A @ 277V-AC, 1800VA, 300W
Terminal wire range: max 2.5mm² (12AWG)
Screw-on Force: 0.4 Nm (3.6 lb.in)
Operating temp.: -30C (-22F) to 70 C (158F).
Storage temp.: -40C (-40F) to 80 C (176F).
Maximum humidity: 95% non-condensing.
Dimensions: 36,0x90,6x58,4mm (WxHxD)
Weight: 100 gr(approx.)
Installation: DIN Rail mounted.
Case Material: High Temp. ABS/PC (UL94-V0)
IP Protection: IP30
Conformity (EU directives)
    -2006/95/EC (low voltage)
    -2004/108/EC (EMC)
Norms of reference:
    - EN 61010 (safety requirements)
    - EN 60255-6
    - EN 61326 (EMC requirements)


WE DO NOT SHIP THIS DATAKOM PRODUCT TO USA AND CANADA
