DATAKOM DKM-430-PRO+GSM. Multiple network analyser, 30 CT inp, 24 fuse inp, 1.9” LCD, RS-485, USB/Device, 2-inputs, 2-outputs, GPRS Modem, DC power supply

* All prices are retail and VAT exclusive

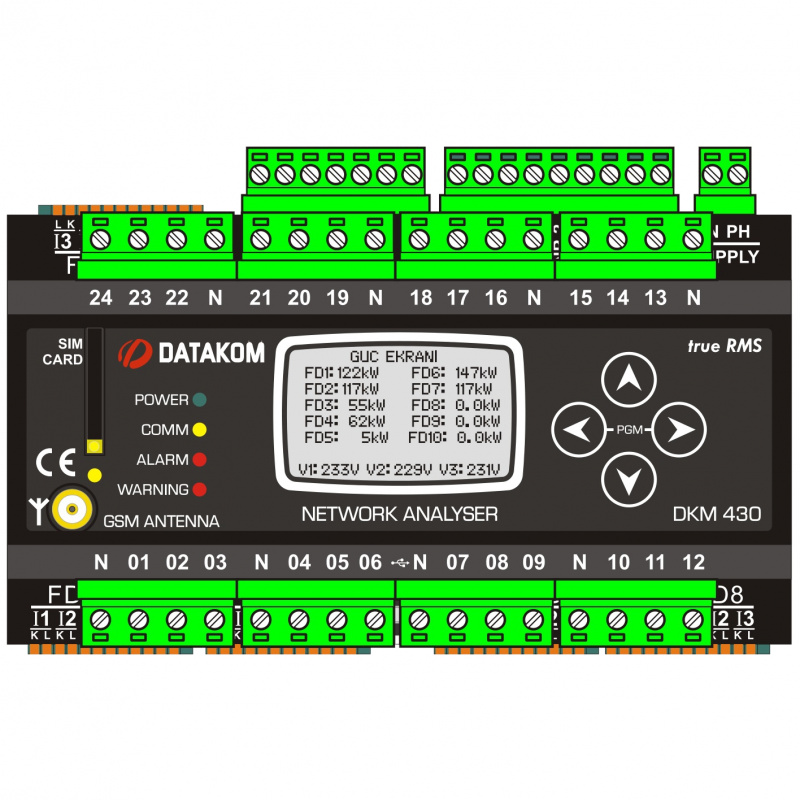

DKM-430-PRO MULTIPLE NETWORK ANALYSER
•    EQUIVALENT TO 10 ANALYSERS
•    1MB RECORD MEMORY
•    30 x CT INPUTS
•    24xFUSE DETECTORS
•    HARMONIC ANALYSIS
•    INTERNAL GPRS MODEM(OPTIONAL)

DKM-430-PRO is a precision instrument allowing  the measurement, recording and remote monitoring of 10 3-phased or 30 single-phased feeders (or any combination of these two) in AC distribution panels.
The unit offers additional 24 inputs capable of being used as FUSE detectors or digital inputs. Several combination of these two are available.
The optional internal GPRS modem allows remote monitoring and control of the distribution panel without the use of any additional module.
The standard model has universal 85-300VAC supply. 24-110VDC supply versions are available.
Current inputs of the unit are designed for 0.1A output current transformers (CTs). CTs are shipped together with the unit and are installed on cables.
Each CT can be assigned to any phase voltage and  any virtual analyser. Inputs can be moved between analysers without modifying connections.
The astronomical relay function calculates sunrise and sunset times precisely for daylight based applications.
Any fault or warning signal can be connected to digital inputs of the unit. Input functions are selected from list. Any function can be assigned to relay outputs of the unit. Relays may be remotely operated through the central monitoring program. Additional 24 inputs are optional.
The isolated RS-485 MODBUS RTU data port is unaffected by ground potential differences and allows safe transmission of information to monitoring and automation systems.

FEATURES:
   • Equivalent to 10 3-phase analysers
   • 24 fuse detector inputs
   • True RMS measurements
   • 1.0% measurement precision
   • Internal record memory: 1MB
   • Internal battery backed-up real time clock
   • Astronomical relay function
   • Isolated RS-485 serial port
   • MODBUS-RTU communication
   • Internal GPRS modem (optional)
   • 2 programmable relay outputs
   • 2 optically isolated programmable inputs
   • Active-reactive energy counters
   • USB port for programming
   • Free programming software
   • Graphic LCD, 128x64 pixels
   • Wide supply range: 85-305VAC / 88-450VDC
   • DC supply version available
   • Wide operating temperature range

TECHNICAL SPECIFICATIONS

Supply Input:
    85 - 305VAC, 50/60Hz, 88 - 450VDC
    Optional 19-150VDC
Measurement Inputs:
    Voltage: 7 - 300 V AC (P-N)
          14 - 520 V AC (P-P)
    Current: 0.001 – 0.12 A AC
    Frequency: 30 - 100 Hz
Fuse Inputs:
    Voltage: 10-300VAC (Ph-N)
    Accuracy: 5%
Accuracy:
    Voltage: 0.5% + 1 digit
    Current: 0.5% + 1 digit
    Frequency: 0.5% + 1 digit
    Power (kW,kVAr): 1.0% + 2 digit
    Cos: 0.5% + 1 digit
Measurement Range:
    CT range: 5A to 6500A
    VT range: 1.0/1 to 5000.0/1
    kW range: 1.0 kW to 5000 MW
Power Consumption: < 5 VA
Loading:
    Voltage Input: < 0.02VA per phase
    Current Input: < 0.02VA per phase
Relay Outputs: 5A @ 250V AC
Digital Inputs:
    Active level: 85 – 305VAC
    Min pulse: 250ms.
    Isolation: 1000V AC, 1 minute
Serial Port:
    Signal type: RS-485
    Protocol: Modbus RTU
    Data Rate: 2400-115200b adjustable
    İsolation: 500V AC, 1 minute
Operating Temp. Range:
    -20°C to +70 °C (-4°F to 158°F)
Max Relative Humidity: 95%, non-condensing
Case Material: Flame retardant, ROHS
                 compliant, high temp. ABS/PC (UL94-V0)
Installation: DIN rail or backpanel
Dimensions: 158x90x60mm (WxHxD)
Weight: 350 gr

UL-CSA Certification:
UL 61010-1, 3rd Edition, 2012-05, CAN/CSA-C22.2
File: E475547, Vol. D1

AB Directives:
2006/95/EC (LVD)
2004/108/EC (EMC)

Reference Standards:
EN 61010 (safety)
EN 61326 (EMC)

WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
