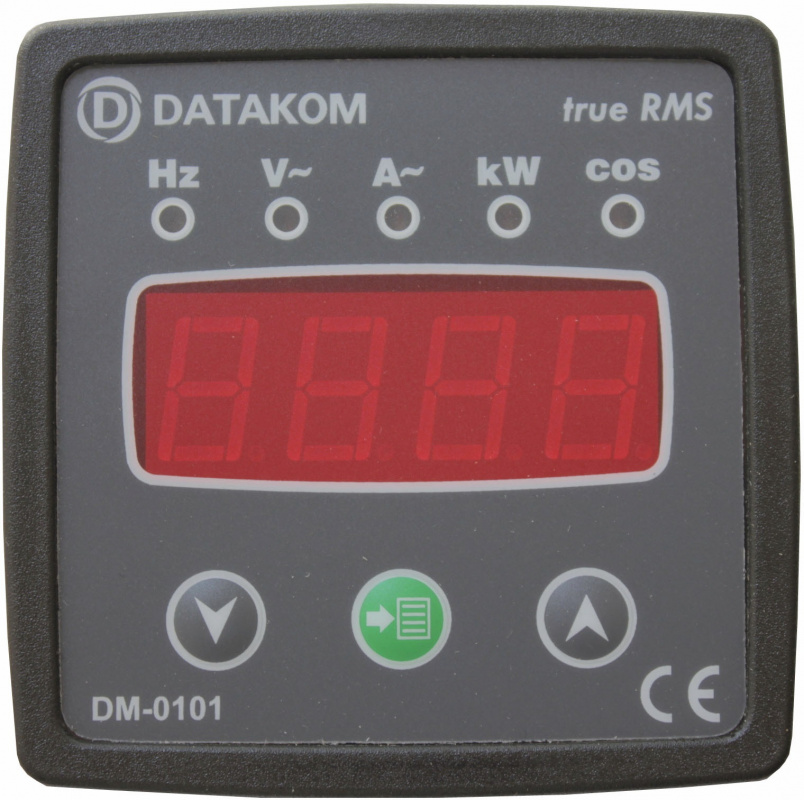

DATAKOM DM-0101 Multimeter panel, 1 phase, 72x72mm

These state-of-the-art panel meters are designed for accurate measurement of the AC RMS voltage, AC RMS current, frequency, active power and power factor in single-phase systems.
Although they are mainly used in electrical panels, these devices can also be integrated in many other applications.
The current transformer ratio can be set between 5/5A and 5000/5A via front panel buttons.

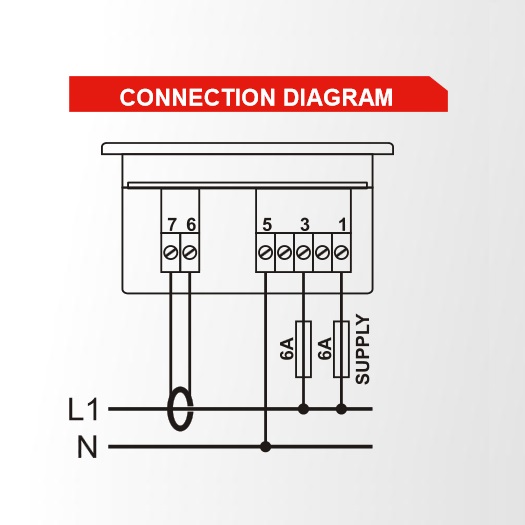

Devices have separate inputs for supply and measurement.
The unit allows both manual selection of the display channel and automatic scrolling.

TECHNICAL SPECIFICATIONS:
Power Supply Input: 170 - 275VAC
50 - 60Hz nominal (± 10%)
Different AC/DC supply values available.
Measurement Inputs:
10 - 300 V AC
0.2 – 5.50 A AC
30 - 100 Hz
Accuracy: Volts-Amps-Hz: 0.5% + 1 digit
kW : 1.0% + 2 digits
cos: 0.5% + 2 digits
Power Consumption: < 1.5W
Burden:
Voltage input: < 0.1VA per phase
Current input: < 1VA per phase
Operating Temperature: -40°C to +70 °C
Maximum Humidity: 95% non-condensing.
Degree of Protection: IP 54 (Front Panel)
IP 30 (Back panel)
Enclosure:
Non-flammable, ROHS compliant, high temperature
ABS/PC (UL94-V0)
Installation:
Flush mounting with rear retaining brackets
Dimensions:
96x48 models: 102x54x41mm (WxHxD)
72x72 models: 78x78x41mm (WxHxD)
Panel Cutout Dimensions:
96x48 models: 92x44mm
72x72 models: 68x68mm
Weight: 125 gr
EU Directives Conformity:
2006/95/EC (low voltage)
2004/108/EC (EMC)
Norms of reference:
EN 61010 (safety requirements)
EN 61326 (EMC requirements)


WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
